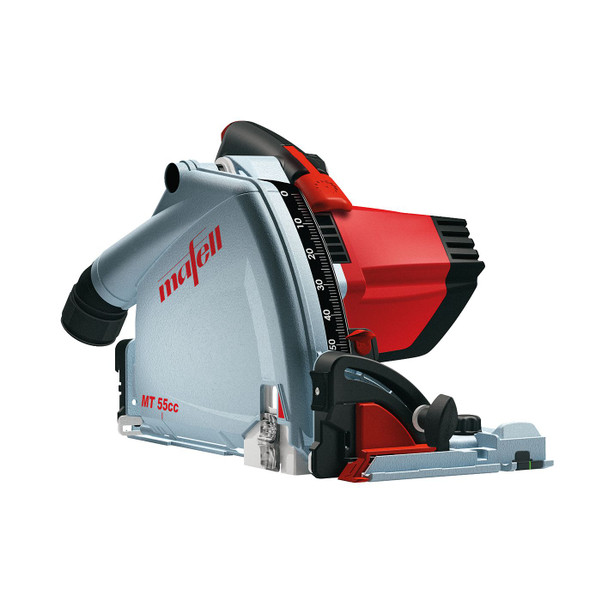

Mafell MT 55CC Plunge Cut Saw in T-MAX (917638)

The idea of developing a new plunge-cut saw is not new in itself. The novel aspect of this development, however, was the origination of a unique precision product from a set of especially designed machine components.

The plunge-cut saw MT 55 cc is a jack of all trades. It can execute plunge, parting, bevel and angled cuts with supreme precision and without any tearing.

The scoring function is quickly activated in a single movement. The MT 55 cc then cuts visible edges as cleanly as a stationary machine, even if the splinter guard is worn.

Continuously variable speed for a variety of materials and sawblades.

The cutting depth range has now been extended to 57 mm (2 1/4 in.). Thanks to the innovative tilting system, the options afforded for bevel cuts are practically unlimited as well.

Technical Data

• Cutting depth at 0° on track: 2"
• Cutting depth at 45° on track: 1-3/8"
• Cutting depth at 0° off track: 2-3/16"
• Cutting depth at 45° off track: 1-9/16"
• Tilt range: -1 to 48°
• Saw blade diameter: 6-1/4" to 6-3/8"
• Nominal speed - no load: 3,600 to 6,250 RPM
• Motor: 120V / 60 Hz
