Mafell
Mafell SG 230 Slot Mortising Attachment for LS 103Ec (200990)
- UPC:
- 4032689081779
- MPN:
- 200990
- Availability:
- Usually Ships in 3-5 Business Days - Subject to Change
Frequently bought together:
Description

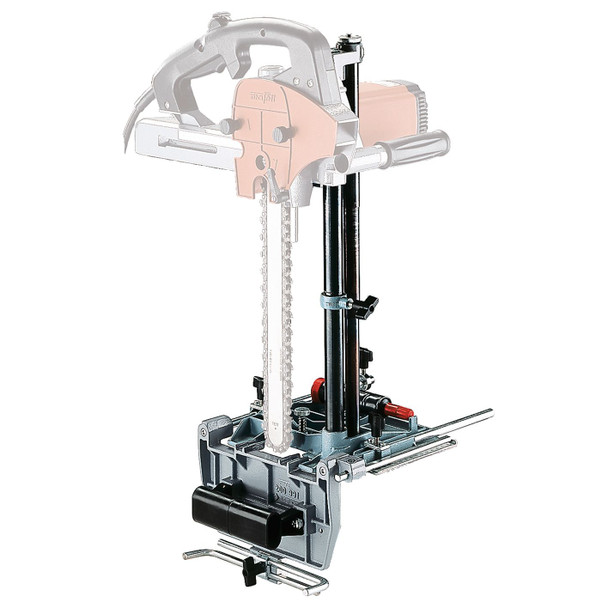

Mafell SG 230 Slot Mortising Attachment for LS 103Ec (200990)
The SG 230 is one of three options for the Chain Mortiser LS 103 Ec for cutting slots in beams and glulam.
Channels for supply lines, slots in posts or for concealed beam joints: with the SG 230 you can cut slots in any timber up to a depth of 285 mm (11 1/4 in.). With working depths up to 230 mm, a spring-loaded mechanism assists the return to the starting position.
With a weight of just 16.7 kg (36.8 lbs), you can even cut slots in fitted beams.
With this combination, the coordination of slot mortising attachment and chain mortiser enables you to make 100 % perfect size slots from beginning to end.
Technical Data
- Mortising depth vertical: 9-1/16" (230mm)
- Mortising depth horizontal: 11-1/4" (285mm)
- Mortising width in one cut: 1/4" - 13/16" (6mm - 21mm)
- Mortising length in one cut: 1-15/16" (50mm)
Applications
- Cutting slots for beam joints and connectors
- Compatible materials include solid wood, trusses and laminated beams
Advantages
- Robust, torsion free guide support stand – for perfect size slots.
- Mortising width from 6 - 21 mm (1/4 - 13/16 in.) – for various applications.
- Low overall weight – for excellent handling even in difficult working positions.
