Mafell
Mafell ZSX EC Carpenter's Chain Saw without Chain set (925530)
- UPC:
- 4032689219127
- MPN:
- 925530
- Availability:
- Usually Ships in 3-5 Business Days - Subject to Change
Description

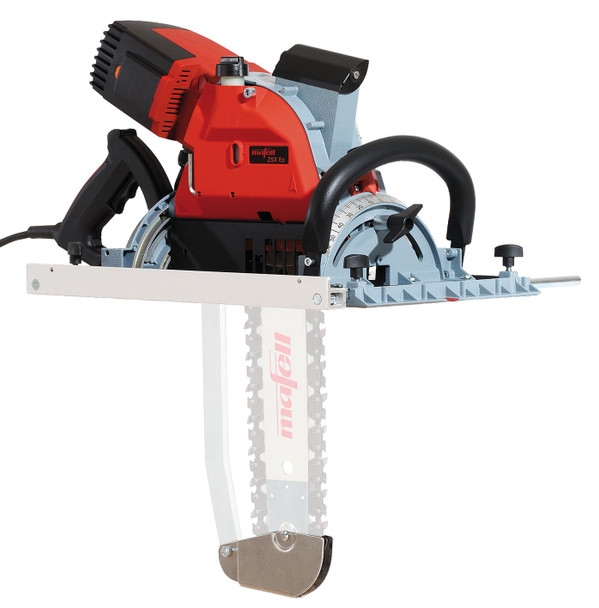

Mafell ZSX EC Carpenter's Chain Saw without Chain set (925530)
MAFELL´s unique chain guide system ensures consistent accurate cuts.
The ZSX Ec can be tilted on both sides to 60°. The ability to precisely set a wide range of working angles in opposing directions offers maximum convenience.
The generously dimensioned and adjustable chip ejector performs extremely efficiently.
The generously dimensioned and adjustable chip ejector performs extremely efficiently.
Automatic chain lubrication with adjustable speed to eliminate oil spillage on timber.
Like all our portable circular carpentry saws, the ZSX Ec also uses our guide rail system.
Equally adapted for operation by either right-handed or left-handed users. The ergonomically designed handle and switch arrangement always applies the feed pressure at right angles to the support.
Technical Data
- Cutting depth at 0°: 15-11/16"
- Cutting depth at 45°: 11-1/16"
- Cutting depth at 60°: 7-13/16"
- Tilt range both directions: -60 to 60°
- Nominal speed - no load: 3,000 to 3,800 RPM
- Motor: 120V / 60 Hz
Applications
- Cross-cutting and rip cuts
- Bevel cuts up to 60°
- General joining work
- Compound miter cuts up to 60°
- Compatible materials include solid wood, laminated beams, insulating materials
Advantages
- Excellent cutting results - thanks to MAFELL special saw chain.
- The universal guide support for very precise individual machining operations such as notch and purlin cuts is available as an optional accessory.
- Excellent handling and optimum convenience - thanks to light weight and a built-in start-up lock.
- Twin-guide tilt adjustment - for precise angle cuts.
- 3000 W CUprex motor, optimized digital electronics and newly developed control technology.
Includes
- Parallel Guide Fence
- Combination Screw Driver
- Two Anti-Splintering Plates
- Quart of Premium Chain Bar Oil
- 32.8 ft Cord
