• 12 V CAS rechargeable battery-operated, self-leveling cross-line laser with plumb dots for working efficiently on the horizontal and vertical planes
• GREENBEAM technology: direct work on sharp and perfectly visible lines - up to 130 Ft./40 m away
• High-performance diodes: Vertical line covers almost the entire room
• Manual mode: Positioning the laser at any angle with a locked pendulum mechanism
• Switchable pulse-modulated lines: compatible for working with line receivers (available as an option)
• Long operating time: 12V LI-POWER 2 Ah CAS rechargeable battery for up to 20 hrs of use
• Short charging times: quick recharging in max 45 minutes
• Protective housing for laser optics: Shock-absorbing soft grip exterior, rotatable housing and protective sliders prevent damage
• Removeable laser base allows the ability to work over bottom plate or base track
• Flexible positioning: 1/4 In. thread, rare-earth magnets and wall bracket

Stabila REC 230 RG Liner Receiver w/Bracket (07210)

Work precisely over long distances: The RL 230 RG receiver is the perfect addition for green and red line lasers. –It determines the exact position of a pulse-modulated laser line in relation to the reference plane – even over long distances and when the line is no longer visible. The illuminated digital display on both sides, acoustic signaling and two sensitivity levels give you the flexibility to master any measuring task. Waterproof and dustproof in accordance with protection rating IP 66, the receiver can be mounted in many different ways and is designed for professional use on construction sites.

FEATURES

• Laser receiver for determining the precise position of the laser beam of pulse-modulated line lasers with green or red laser diodes – even over long distances or in strong sunlight.
• Digital display on both sides for fast work – lights up at the touch of a button.
• Visual display: Arrow symbols on the display indicate the position of the receiver in relation to the reference plane of the laser.
• Switchable acoustic guidance with adjustable beep volume (loud: 105 dB, quiet: 85 dB).
• Two adjustable sensitivity levels to match the application – “Fine” with a sensitivity of ± 1/32 in (± 1 mm) or “Coarse” with a sensitivity of ± 1/8 in (± 3 mm) for higher ranges.
• Waterproof and dustproof in accordance with protection rating IP 66.
• A variety of mounting options – a bracket for attaching to leveling rods and an integrated magnet system.
• Battery status display.
• Height of the receiver line: 3 1/2 in (90 mm).
• Operating time: 45 hours.

BENEFITS

• Powerful receiver for pulse-modulated laser lines (green/red) to extend the working area.
• Illuminated digital display on both sides.
• Acoustic and visual guidance.
• Integrated magnet system on the upper edge of the housing.
• Waterproof and dustproof (IP 66).

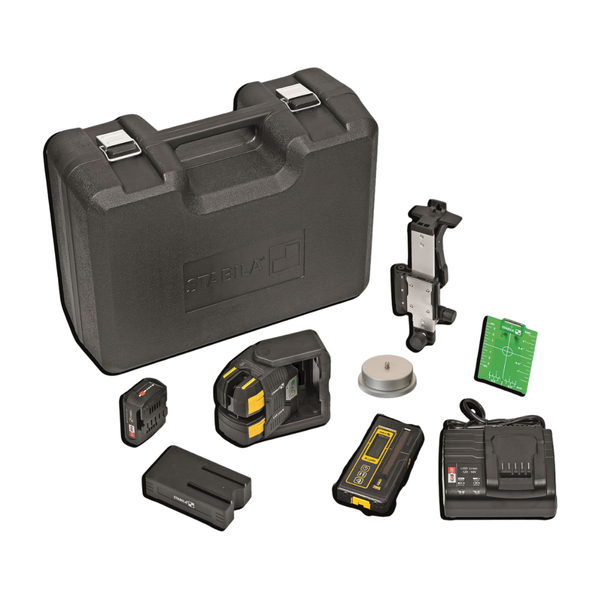

Includes

• LAX500G Cross Line and Plumb Laser
• REC230RG Line Receiver
• CAS 12 V Li-Power 2.0 Ah Battery (Cat. # 07626)
• SC30CAS Charger (US)
• Laser Base
• Wall Bracket
• Target Plate
• Carrying Case
