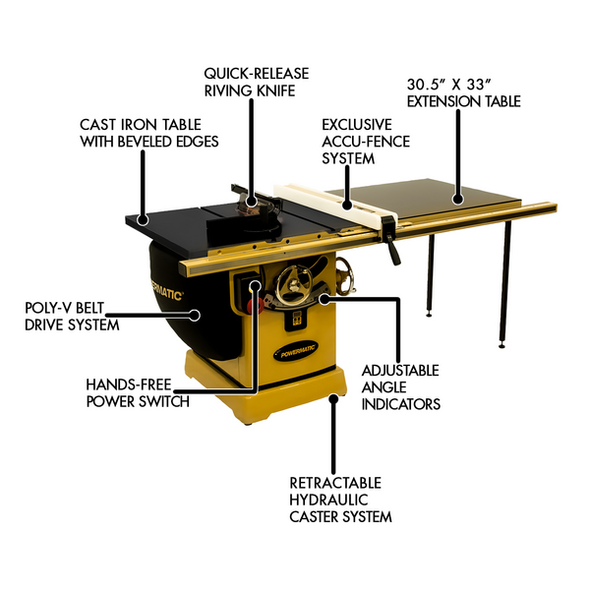

Powermatic ArmorGlide PM1000T 10" Table Saw, 52" Rip Accu-Fence, 1-3/4HP, 1PH, 115V (PM1-1791001KT)

• ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
• Miter gauge is built with robust materials with many positive stops for the most commonly used angles
• Blade surround and collection hose provide an unobstructed path, maximizing dust collection
• Arbor lock allows for one handed blade changes with minimal tools
• Conveniently located hands free power switch
• Ergonomically designed 7” handwheels provide momentum, making blade height and bevel adjustments easy
• Exclusive Accu-Fence provides rigidity and precision
• Precision ground cast iron work surface features a beveled edge for smoother operation
• Requires only 115V connection for easy installation
• The poly-V belt drive system reduces vibration and maximizes efficiency

SPECS

• Arbor Diameter (In.): 5/8
• Arbor Speed (RPM): 4200
• Dust Collection Minimum CFM Required (CFM): 350
• Dust Port Outside Diameter (In.): 4
• Maximum Depth of Cut at 45 Degrees (In.): 2-1/8
• Maximum Depth of Cut (In.): 3-1/8
• Maximum Diameter of Dado (In.): 8
• Maximum Rip Left of Blade (In.): 12
• Maximum Rip Right of Blade (In.): 52
• Maximum Width of Dado (In.): 13/16
• Miter Gauge Type: T-Slot with Stops
• Motor Phase: 1
• Motor Power (HP): 1-3/4
• Motor Voltage (V.): 115/230
• Overall Dimensions (L x W x H) (In.): 43 x 83 x 44
• Prewired Voltage (V.): 115
• Recommended Circuit Size (Amps.): 20
• Style (Type): Cabinet
• Table Height from Floor (In.): 34-1/4
• Table in Front of Saw Blade at Maximum Depth of Cut (In.): 10
• Table Size (L x W) (In.): 20 x 27
• Table Type: Cast Iron
